You need a tough pipe for hot and high-pressure work. A106B Seamless Carbon Steel Pipe works well because it does not have welded seams. Yuan Steel sells this pipe and uses strict global rules. You get good things like strength, safety, and choices for big jobs.

Key Takeaways

• A106B Seamless Carbon Steel Pipe works well in hot and high-pressure places. It is a good choice for power plants and petrochemical factories.

• The pipe has no seams, so it is less likely to break. This makes it safer and stronger for important systems.

• Yuan Steel lets you pick the size and thickness you need. This helps you get the right pipe for your project.

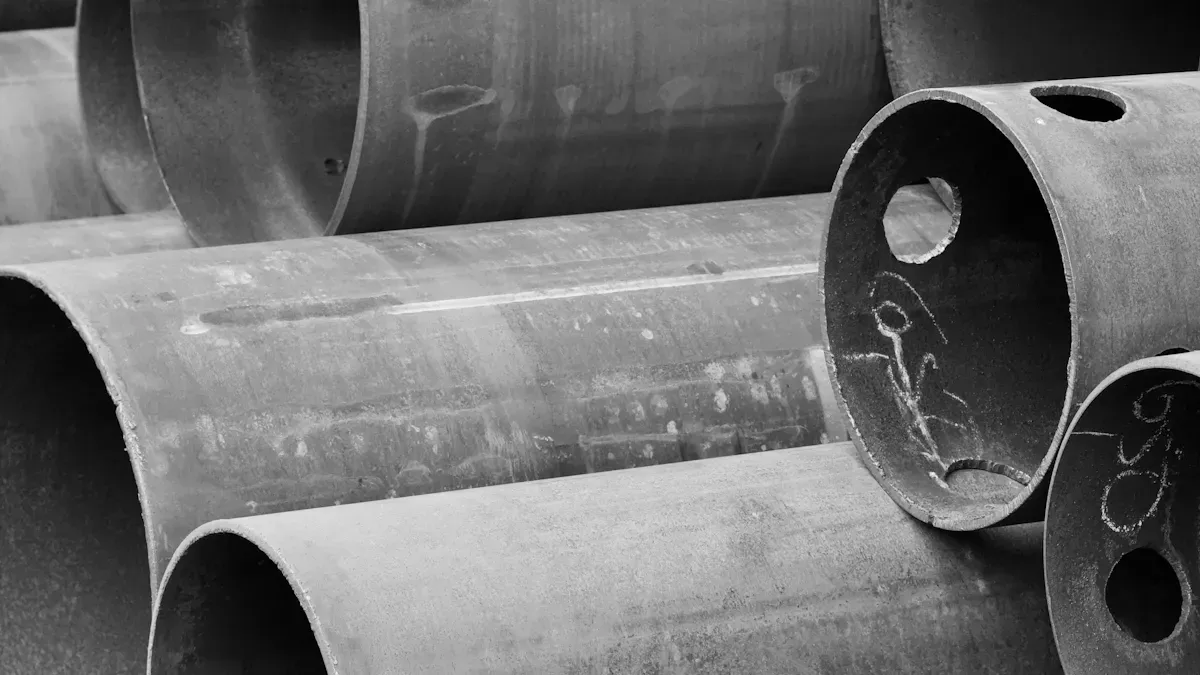

A106B Seamless Carbon Steel Pipe: Properties and Standards

Chemical Composition and Mechanical Strength

When you pick A106B Seamless Carbon Steel Pipe, you get a ASTM A106 Grade B pipe with a strong chemical mix. This pipe has different elements that make it tough and last long. Look at the table to see the main chemical rules:

Low phosphorus and sulfur help keep the ASTM A106 Grade B pipe from breaking easily. Enough manganese and carbon make the pipe strong. If carbon goes down by 0.01%, you can add 0.06% more manganese, but not over 1.35%. Chromium, copper, molybdenum, nickel, and vanadium together must stay under 1%.

Mechanical strength matters too. The ASTM A106 Grade B pipe must be able to handle lots of force before it bends or snaps. Here are the main mechanical facts:

This means the pipe can stretch and bend without breaking. That is important for jobs with high pressure and heat.

ASTM A106B Standards Overview

You want a pipe that follows world rules. A106B Seamless Carbon Steel Pipe meets the ASTM A106B standard. This standard covers many things:

• Chemical Composition: The pipe must have the right mix of carbon, manganese, phosphorus, sulfur, and silicon.

• Mechanical Properties: It must reach at least 415 MPa tensile strength and 240 MPa yield strength. Pipes with thinner walls must stretch at least 30%, while thicker pipes must stretch at least 28%.

• High-Temperature Performance: The pipe can handle creep and oxidation up to 454°C. After 1,000 hours at this heat, it loses less than 0.6mm from oxidation.

• Dimensions: Pipes come in sizes from 1/8 inch to 48 inches wide. Wall thickness follows ASME B 36.10M rules. Yuan Steel can make pipes in special lengths and thicknesses for your job.

• Testing and Quality Assurance:

  • Hydrostatic testing checks for leaks by filling the pipe with water and pushing pressure for five seconds.

  • Mechanical tests, like tensile and flattening tests, make sure the ASTM A106 Grade B pipe is strong and bends well.

  • Non-destructive testing (NDT) finds hidden problems without hurting the pipe.

  • Heat treatment helps the pipe keep its shape and strength.

Yuan Steel gives you more choices. You can pick hot-finished pipes for bigger sizes or cold-drawn pipes for smaller, more exact needs. Surface finishes can be rough or smooth and shiny. Tolerances can be as close as ±0.05 mm for the outside diameter.

Tip: Yuan Steel’s A106B Seamless Carbon Steel Pipe matches ASTM A53 Grade B and API 5L Grade B for chemical and mechanical properties. You can use it in many projects that need these other standards.

Here is a quick comparison:

Yuan Steel checks every pipe carefully. Each pipe gets hydrostatic testing, tensile testing, and flattening or bend tests. You get a pipe that meets or beats the best safety and performance rules.

If you need a pipe for hot and high-pressure jobs, A106B Seamless Carbon Steel Pipe from Yuan Steel gives you strength, flexibility, and peace of mind.

Performance, Advantages, and Applications

High-Temperature and Pressure Resistance

You need a pipe that can take heat and pressure. A106B Seamless Carbon Steel Pipe is strong for these jobs. It works in places where it gets as hot as 425°C. The pipe can handle pressure from 276 to 3947 pounds per square inch. This makes it great for hard work.

You see this ASTM A106 Grade B pipe in power plants and refineries. It is used in boiler systems and chemical plants. The pipe does not have welded seams, so it is less likely to break. You can trust it for steam lines and hot oil systems.

Tip: If you need a pipe for bending or shaping, A106B Seamless Carbon Steel Pipe is a good choice. It stays strong even after you bend or shape it.

Comparison with Other Pipe Materials

You might wonder how this pipe compares to others. Seamless pipes like A106B are better for high-pressure and high-heat jobs than welded pipes. Here are some reasons:

• Seamless pipes are made for hot and high-pressure work.

• They are less likely to break under stress.

• Welded pipes have seams that can be weak spots.

When you compare A106B Seamless Carbon Steel Pipe to stainless steel pipes, you see some differences:

• ASTM A106 is made of carbon steel. Stainless steel has chromium and nickel.

• Carbon steel pipes can rust if they get wet. Stainless steel does not rust as easily.

You also want to think about cost. A106B Seamless Carbon Steel Pipe usually costs less than stainless steel or alloy steel pipes. The price per kilogram is about $0.80 to $1.15, depending on the size and coating. This makes it a smart choice if you want good performance and value.

Common Industrial Uses

You find A106B Seamless Carbon Steel Pipe in many industries. It is popular because it works well in hot and high-pressure places. Here is a table that shows where you might use it:

You see this pipe in power plants, refineries, and chemical plants. It is also used in marine and offshore jobs. The pipe’s strength and heat resistance make it a favorite for engineers.

Yuan Steel gives you more than just the pipe. You get help from experts who can visit your site or answer questions online. You get support for installation and maintenance. If you need to protect your pipe from rust, you can pick anti-corrosion paint, hot-dip galvanizing, or epoxy resin coating. These choices help your pipe last longer, even in tough places.

Note: When you choose A106B Seamless Carbon Steel Pipe from Yuan Steel, you get a strong, reliable pipe and support from a team that cares about your project’s success.

Experts say A106B Seamless Carbon Steel Pipe helps stop problems in jobs with high pressure and heat.

These pipes are strong and work well in very hot and high-pressure places. Yuan Steel’s team helps you with good service and can make special pipes for your needs. Many people trust Yuan Steel because they give good quality and help their customers.

FAQ

What sizes of A106B Seamless Carbon Steel Pipe can you get?

You can choose pipes from 1/8 inch to 48 inches in diameter. Yuan Steel offers many thicknesses and custom lengths.

Can you use A106B Seamless Pipe for steam or hot oil?

Yes. You can use this pipe for steam, hot oil, and other high-temperature fluids. It works well in power plants and refineries.

How does Yuan Steel make sure the pipes are safe?

Yuan Steel tests every pipe with hydrostatic and non-destructive tests. You get pipes that meet strict safety and quality standards.
